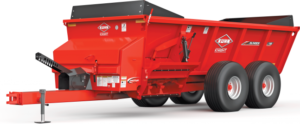

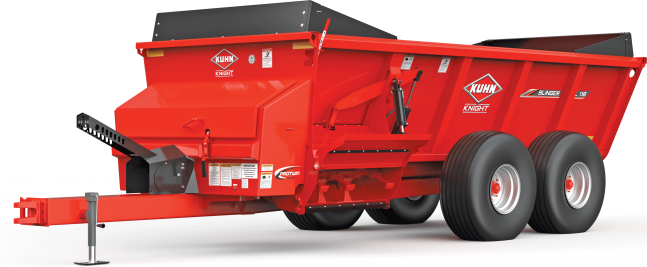

Kuhn-Knight SL 100 Series

top

Versatile, Efficient & Reliable.

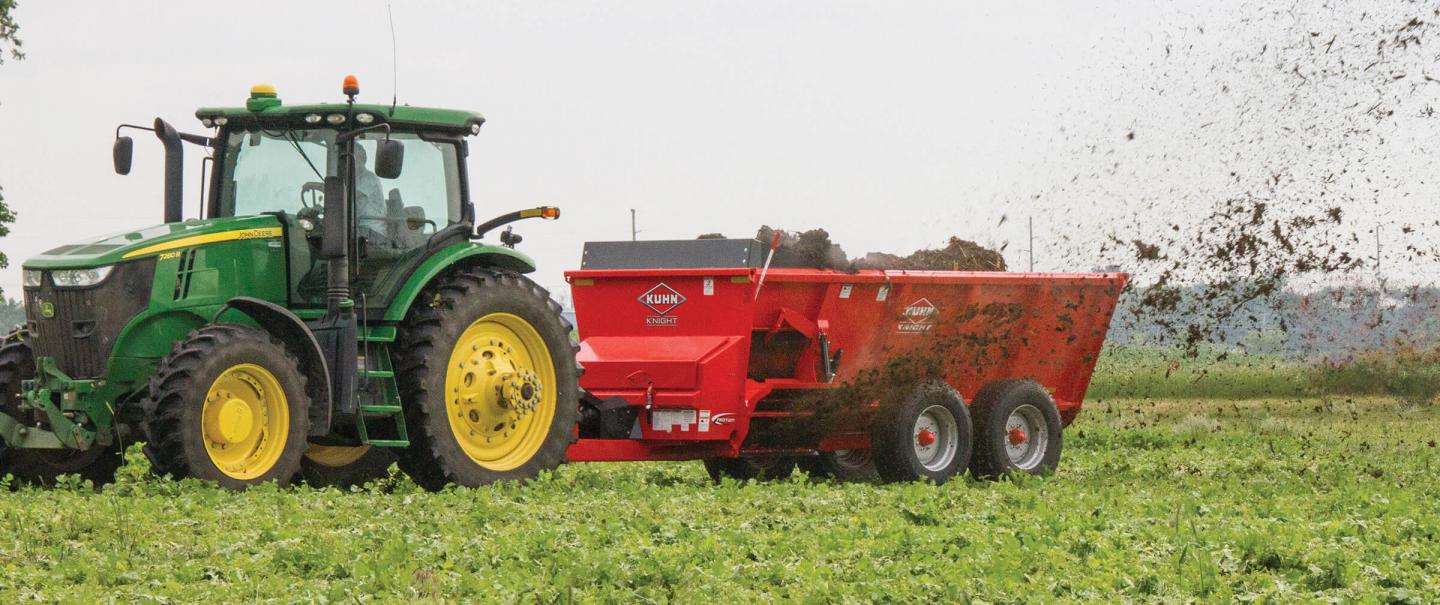

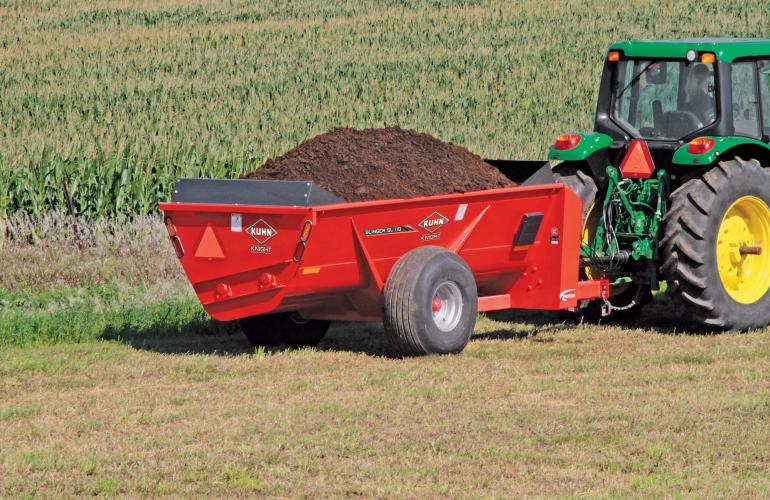

If you need one machine to handle all of your diverse spreading needs, look to the KUHN Knight SL 100 Series ProTwin® Slinger® manure spreaders. Four trailer models are available with capacities ranging from 1,000 to 2,400 gallons. KUHN Knight SL 100 Series ProTwin® Slinger® manure spreaders offer next level performance and reliability to give you maximum return for your equipment dollars. The unique ProTwin twin-auger design and exclusive v-body construction allow the Slinger spreader to handle the widest variety of wet and dry materials, compared to any spreader on the market. Complete adjustability of the discharge shroud greatly improves material breakup for more consistent, even spreading. A new hammer design provides more wear surface on the bottom edge to extend hammer life. If you need one machine to handle all of your diverse spreading needs, look to the SL 100 Series. The SL 110 is also offered in an orchard/ vineyard model to meet specific growers’ needs. This model features a hydraulic deflector with rubber extension, which provides accurate material placement while adding some forgiveness necessary in narrow row spacing. This model also features a narrow 10.5L tire and CV PTO making it very maneuverable in tight locations.

Models

SL 110 Orchard Trailer

SL 110 Trailer

SL 114 Trailer

SL 118 Trailer

SL 124 Trailer

Features

The First of Its Kind, ProTwin® Design

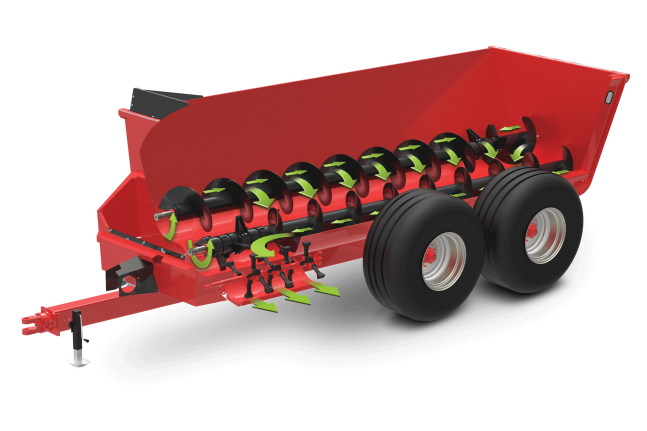

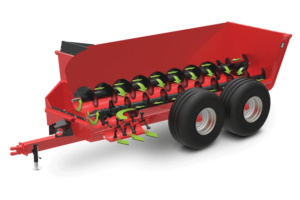

The raised, right auger moves material rearward to keep the load level. The left, lower auger moves material forward to continuously feed the discharge door.

  • Consistent Flow to the Discharge:
    The steep, slanted sides help provide a reliable material flow, continuously feeding material down to the augers. Combined with the unique auger design, this helps ensure constant delivery of material to the swinging hammer discharge.
  • Eliminates Bridging:
    The well-proven, twin-auger design eliminates material bridging. The two augers work together to create a bidirectional flow that provides constant agitation and steady movement, even with the most challenging materials.

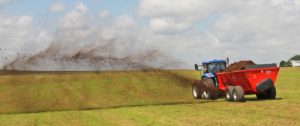

Fast Unloading with Consistent Spread Pattern

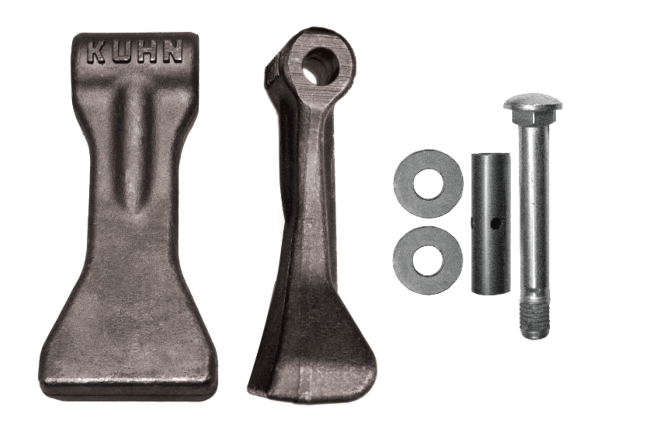

Enhanced Hammer Design

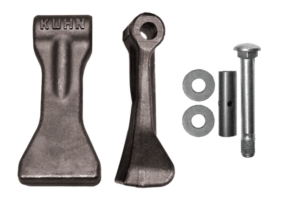

A new hammer design features more wear surface on the bottom edge to extend hammer life. The new fully adjustable shroud helps decrease wear, extending life even further. Nylon bushings and washers help prevent premature wear to the bolts, hammers and hammer shaft ears.

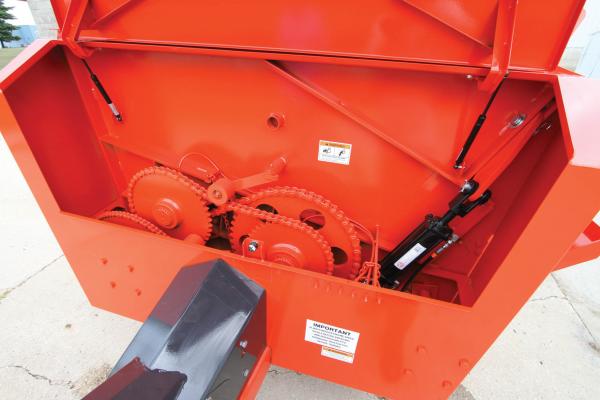

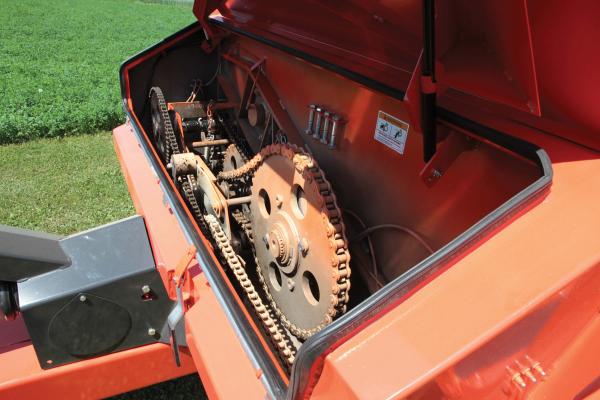

Fully Enclosed, Front Oil Bath

The SL 118 and 124 feature a fully enclosed, front oil bath. A dependable heavy-duty roller chain drive runs in oil and has spring-loaded, self-aligning poly tighteners for long life. Final drive shafts and sprockets are splined for strength and serviceability.

Upgraded from the previous 8100 Series, the SL 118 and 124 now offer shear protection for the upper and lower auger to help limit damage from foreign materials. The shear assembly is located in the front oil bath for the lower auger and on the rear drive for the upper auger.

Video Overview: Kuhn-Knight SL 100 Series ProTwin Slinger Manure Spreaders
